  • Binswitch Elite

4B Binswitch Elite (Kit)

$207.15
Shipping:
Calculated at checkout

Product Description

Used as a point level indicator or
plugged switch indicator in spouting.

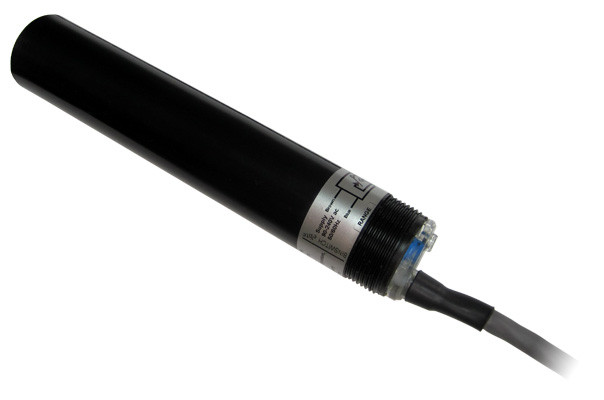

The Binswitch Elite sensor detects level or plug situations for bulk granular solids or liquids in tanks, bins, or silos and can be used as a plug or choke detector in chutes, conveyors and elevator legs.

The sensor is fully encapsulated in a 30 mm diameter polycarbonate body that is corrosion and abrasion resistant, dust-tight and waterproof.  The Binswitch Elite operates by detecting capacitance change when material is present.

A user selectable relay output can be magnetically calibrated to be normally energized or de-energized, and during calibration the sensor automatically compensates for material build up, shields or attached metal probes

Kit Consists of:

Qty. Product # Product Name Discription
1 BSE1V10C Binswitch Elite
5-Wire

Multi voltage Unit: 12/24 VDC, 110/220 VAC.
CSA Approved for Class II, Div. 1 Areas.

1 BAS Binswitch Abrasion
Mount
Binswitch Abrasion Mount 1-1/4" NPT to 30mm
Reducer/Fitting, compression fitting. Closed tip
protects sensor from abrasive material wear.
1 A34NPT Conduit
Adapter
Connects a 30mm sensor to 3/4" NPT conduit
fitting/sealtite making the sensor to conuit
connection "dust tight". Required for a CSA
Class II Div. 1 installation with the binswitch
and M300 slipswitch sensors.
1 SMP Mounting
Plate
Standard/side mounting plate. 1-1/4" NPT
coupler on 8 inch round plate.
