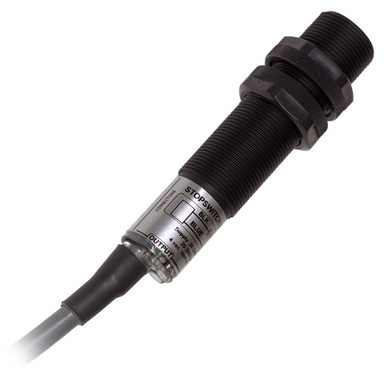

  • M100 Stopswitch
  • Whirligig and M100 Stopwatch on Conveyor Attached with Mag-Con Adaptor
  • Whirligig Exploded View with M100 Stopswitch

M100 Stopswitch (Kit)

Calculated at checkout

Product Description

Used to monitor zero speed / stopped motion on equipment

The M100 Stopswitch is a simple inductive shaft speed monitoring device. The self-contained unit has a single set point, which signals when the shaft has stopped rotating. It can be used for process control, motion detection and stopped shaft indication.

An inductive sensing device located in the nose of the M100 enclosure will detect a metal target. This target can be an existing bolt head or device attached to a shaft. The M100 Stopswitch requires no calibration and provides an output when the shaft has stopped rotating.

Kit Consists of:

Qty. Product # Product Name Discription
1 M1001V10F Stopswitch M100

Multi Voltage 110/220 VAC, 24 VDC Normally closed above
minimum input speed and open at stopped motion. 4 second
start up delay. CSA Approved for Class II, Div. 1 Groups E,
F & G Locations.

1 A12NPT Conduit Adapter Conduit adapter M18 to 1/2" NPT. Connects 18mm sensor
to 1/2 NPT conduit fitting/sealtite making the sensor to
conduit connection "dust tight". Required for a CSA Class
II Div. 1 installation with the M100 Stopswitch.
1 WG1-4B-4 Whirligig® 4 Pulse
Per Rev
Sensor mount, 4 pulse targe & guard. 18/30mm sensor
bracket included.
1 MAG2000 Mag-Con™ 2" Dia. Magnetic connector for Whirligig. 150 pound pull magnet
in a stainless steel housing. Max. Speed rating is 300 RPM.
